ICP-CC408 series control panel is a burglar alarm system with 8 programmable zones, 8 programmable user codes, and 8 wireless remote user codes. The control panel is divided into two partitions and supports three arming modes. It also features remote arming, daytime alarm, hold-up alarm, and keyboard anti-tamper alarm.

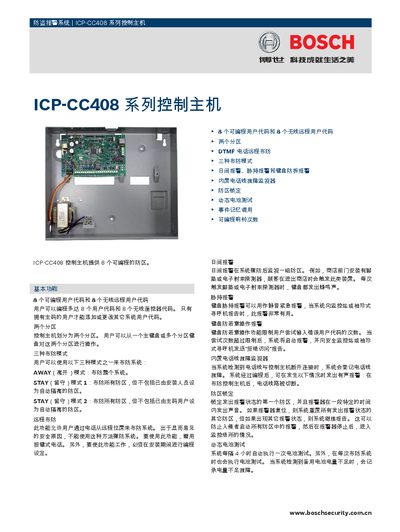

The ICP‑CC408 series control master is a security alarm panel that supports up to eight programmable user codes and eight wireless remote user codes. It is divided into two partitions and offers three arming modes (AWAY, STAY 1, STAY 2) plus remote arming via DTMF telephone.
The manual describes the panel’s functions such as daytime alarm, hold‑up alarm, keyboard tamper alarm, built‑in telephone line fault monitor, zone lock, dynamic battery test, event memory recall, and programmable ring count. Technical specifications, hardware accessories, installation guidelines, and ordering information are also included. This manual is written in Chinese.
| Alarm current | 115 mA |
|---|---|
| Alarm current with keyboard | 105 mA |
| Standby current | 65 mA |
| Main power supply | 240 V AC, 18 V AC, 1.3 A |
| Backup battery | 12 V DC, 6.5 Ah sealed lead‑acid |
| Dimensions (W×D×H) | 306 mm × 262 mm × 84 mm |
| Weight | 2.5 kg |
The panel supports up to eight programmable user codes and eight wireless remote user codes.
In alarm state the panel draws 115 mA, and 105 mA when a keyboard is attached.
