The DS7446KP is a four-wire alphanumeric LCD keypad that works with the DS7200 Series controllers. It supports all system functions. This keypad is required when performing local programming on a controller.

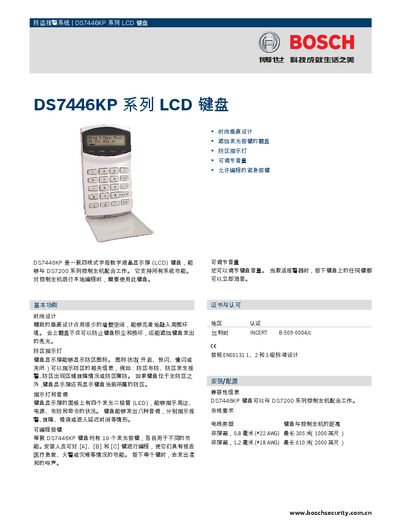

The DS7446KP series LCD keyboard is a four‑wire alphanumeric display keypad designed for use with Bosch DS7200 series control panels. It features a compact vertical design, a protective flip‑cover, zone indicator icons, four status LEDs, eight audible tones, 19 illuminated keys, and three programmable emergency keys for medical, fire, or disaster reporting.
The manual covers installation and configuration, including compatibility with DS7200 panels, wiring requirements for shielded and non‑shielded cables, and detailed technical specifications such as dimensions, weight, operating voltage, current consumption, and environmental limits. Ordering information for regional variants (EX, SE, FR, NL, DE, ES) is also provided. This manual is written in Chinese.
| Dimensions | 13.7 × 7.6 × 2.4 cm (5 × 3 × 1 in) |
|---|---|
| Weight | 0.168 kg (0.37 lb) |
| Operating Voltage | 10.2 V DC |
| Standby Current | 35 mA |
| Alarm Current | 100 mA |
| Operating Temperature | -10 °C to +55 °C (14 °F to 130 °F) |
| Storage Temperature | -10 °C to +55 °C (14 °F to 130 °F) |
| Relative Humidity | 80 % at 40 °C (100 °F) |
Each DS7446KP keyboard provides three programmable emergency keys.
A non‑shielded 22 AWG cable can be run up to 305 feet (≈ 93 m).
The panel has four LEDs indicating perimeter, power, arm, and trouble status.
