TV58G is a heat sink from Aavid Thermalloy. It is suitable for TO-220 packages. The shape of the heat sink is channel style with slanted fins. It is available in black and anodized finish.
The TV40G is a standard Aavid Thermalloy heat sink designed for TO-220 semiconductor packages. It features a narrow‑channel style with twisted fins and an anodized finish, offering efficient heat dissipation for a variety of applications.

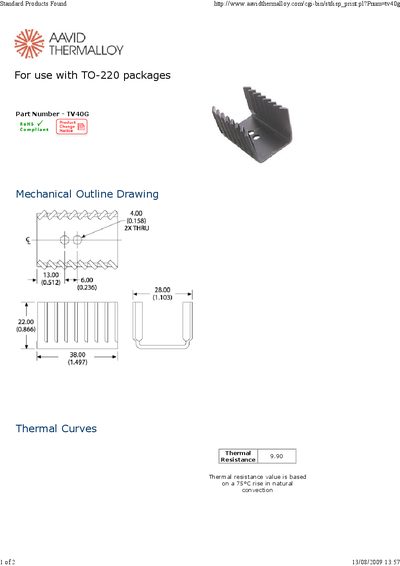

The sheet includes a mechanical outline drawing, thermal resistance value of 9.90 (based on a 75 °C rise in natural convection), and air‑velocity performance curves. For custom solutions or modifications, users can contact Aavid sales representatives via phone or email.
| Part Number | TV40G |
|---|---|
| Thermal Resistance | 9.90 |
The part number is TV40G.
The thermal resistance is 9.90, based on a 75 °C rise in natural convection.
Contact your local Aavid representative, call (603) 224‑9988, or email [email protected] for custom modifications.
