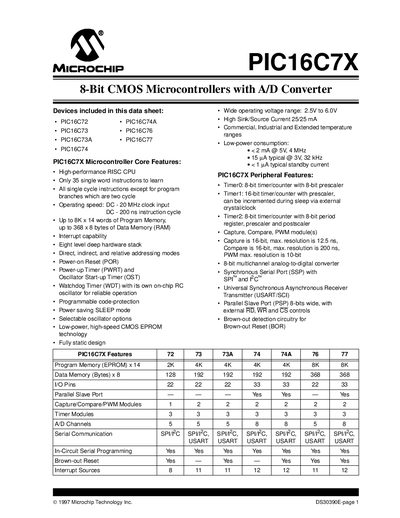

This data sheet provides detailed information about the PIC16C7X 8-bit CMOS microcontrollers, including its core features, peripheral features, characteristics, and specifications.
The PIC16C7X family is a low‑cost, high‑performance 8‑bit CMOS microcontroller series with integrated 8‑bit A/D converters. It offers up to 20 MHz operation, up to 8 K × 14‑bit program memory, and up to 368 bytes of data RAM, with voltage ranges from 2.5 V to 6.0 V.
The devices support a rich set of peripherals including multiple timer/counters, Capture/Compare/PWM modules, a synchronous serial port (SPI/I²C), USART, and a parallel slave port. Various package options (DIP, SDIP, PLCC, etc.) and programming options (UV‑erasable, OTP, QTP, SQTP) are described, along with electrical characteristics and ordering information.
| Operating Voltage Range | 2.5 V – 6.0 V |
|---|---|
| Programming Method | In‑Circuit Serial Programming |
PIC16C7X devices operate from 2.5 V to 6.0 V.
The family supports In‑Circuit Serial Programming, UV‑erasable, OTP, QTP, and SQTP devices.
