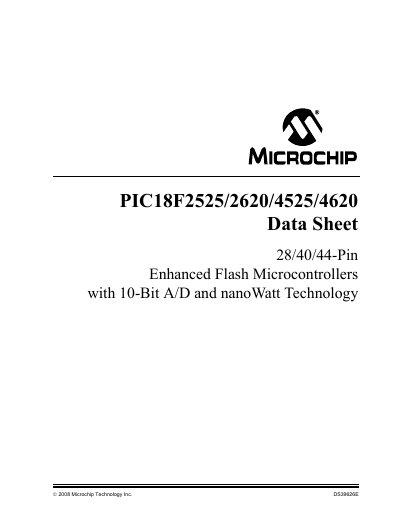

MICROCHIP PIC18F2525/2620/4525/4620 28/40/44-Pin Enhanced Flash Microcontrollers with 10-Bit A/D nanoWatt Technology handbook

28/40/44-Pin Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology

Brand: MICROCHIP
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 412
File format: PDF
File size: 6 MB
Published: 12 April, 2012
Updated: 30 September, 2023
Models: PIC18F2525/2620/4525/4620, C18, PIC18F2525
MD5 checksum: 1997353320958CC168DFB19E7E6A1A6D
PDF: MICROCHIP PIC18F2525/2620/4525/4620 28/40/44-Pin Enhanced Flash Microcontrollers with 10-Bit A/D nanoWatt Technology handbook PDF

About this manual

The PIC18F2525/2620/4525/4620 family offers high‑performance 8‑bit microcontrollers with enhanced flash program memory, 10‑bit A/D conversion, and nanoWatt low‑power technology. Devices are available in 28‑pin, 40‑pin and 44‑pin packages and support both standard and low‑voltage operation.

Key features include multiple power‑managed modes (Run, Idle, Sleep, Ultra‑Low), a flexible oscillator system with up to ten options, high‑current I/O (25 mA), extensive peripheral modules (MSSP, EUSART, ECCP, hardware multiplier), and robust memory endurance (100 k erase/write cycles for flash, 1 M for EEPROM).

What's inside

Device Overview
Oscillator Configurations
Power‑Managed Modes
Memory Organization
I/O Ports
Timer Modules
ADC Module
Electrical Characteristics

Specifications

Maximum I/O sink/source current	25 mA
Run mode current consumption	11 µA typical
Idle mode current consumption	2.5 µA typical
Sleep mode current consumption	100 nA typical
Operating voltage range	2.0 V – 5.5 V

Frequently asked questions

What is the maximum current that each I/O pin can sink or source?

Each I/O pin can sink or source up to 25 mA.
