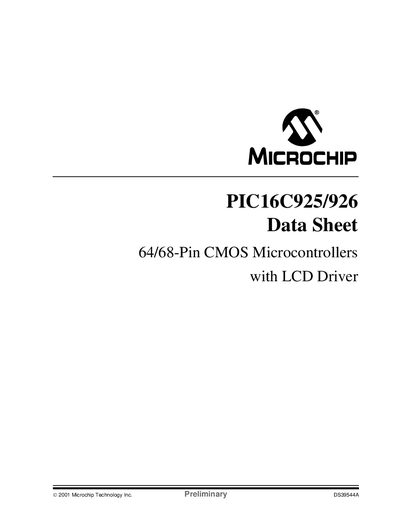

This document describes the PIC16C925/926, a 64/68-pin CMOS microcontroller with an LCD driver. It provides information on the basic features, characteristics, and technical details of the product.
The PIC16C925/926 family are low‑cost, high‑performance 8‑bit CMOS microcontrollers that include an integrated LCD driver. They are offered in 64‑pin and 68‑pin packages and support a wide voltage range of 2.5 V to 5.5 V.
The datasheet covers device overview, memory organization, I/O ports, timer modules, capture/compare/PWM, synchronous serial port, 10‑bit ADC, LCD module, special features, instruction set, electrical characteristics, packaging information, and revision history.
| Maximum Clock Frequency | 20 MHz |
|---|---|
| Program Memory (PIC16C925) | 4 K × 14‑bit words |
| Program Memory (PIC16C926) | 8 K × 14‑bit words |
| Data Memory (SRAM) | 336 bytes |
| Operating Voltage Range | 2.5 V to 5.5 V |
| Package Types | 64‑pin TQFP, 68‑pin PLCC (CERQUAD) |
| ADC | 10‑bit, 5‑channel |
| LCD RAM | 16 bytes dedicated LCD RAM |
| I/O Pins | 25 I/O pins with direction control, 25‑27 input‑only pins |
The device operates up to a 20 MHz clock input.
The PIC16C926 includes up to 8 K × 14‑bit words of EPROM program memory.
It works from 2.5 V to 5.5 V.
Yes, it has a programmable LCD timing module with dedicated LCD RAM and support for up to 32 segments and 4 commons.
