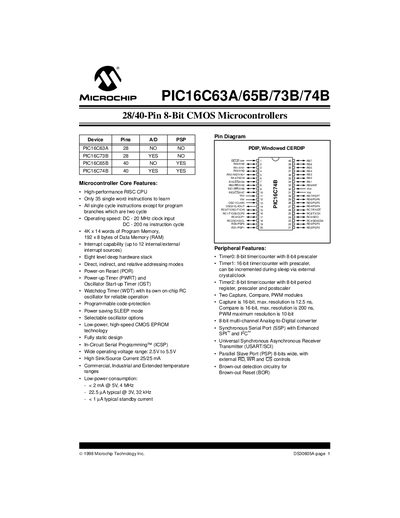

DS30605A is a microcontroller produced by Microchip Technology Inc. with the features of high-performance RISC CPU, 4K x 14 words of Program Memory, 192 x 8 bytes of Data Memory (RAM)
The Microchip PIC16C63A/65B/73B/74B family provides 8‑bit CMOS microcontrollers in 28‑ and 40‑pin packages. They feature a high‑performance RISC CPU, up to 4 KB of 14‑bit program memory, 192 bytes of RAM, and a wide operating voltage range of 2.5 V to 5.5 V.
Key peripherals include multiple timers, capture/compare/PWM modules, a synchronous serial port (SSP), USART, and an 8‑bit ADC (not available on all devices). The devices support up to 12 internal/external interrupt sources and offer low‑power modes such as SLEEP and Power‑up Timer.
| Operating frequency | DC - 20 MHz clock input |
|---|---|
| Program memory | 4 K × 14‑bit words |
| Data memory (RAM) | 192 bytes |
| Interrupt sources | Up to 12 internal/external |
| Operating voltage range | 2.5 V to 5.5 V |
| Typical active current @ 4 MHz | < 2 mA |
| Typical standby current | < 1 µA |
The devices operate up to a DC 20 MHz clock input.
Each device provides 4 KB of 14‑bit program memory.
They operate from 2.5 V up to 5.5 V.
They support up to 12 internal or external interrupt sources.
