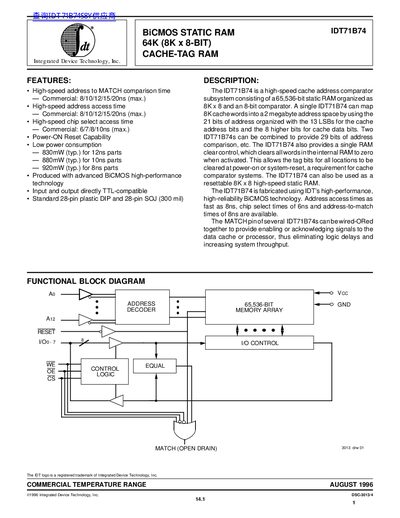

IDT71B74 is a high-performance static RAM organized as 8K x 8 and can provide 29 bits of address comparison.
The IDT71B74 BiCMOS static RAM provides a 65,536‑bit (8K × 8) cache‑tag memory with an integrated 8‑bit comparator. It can map 8 KB cache words into a 2 MB address space and supports rapid address‑to‑match comparison for high‑throughput cache systems.
Key specifications include address access times as fast as 8 ns, chip‑select times down to 6 ns, low power consumption (830 mW typ. for 12 ns parts), and operation from a 5 V supply (±10%). The device is offered in a 28‑pin plastic DIP or 28‑pin SOJ package and operates over a commercial temperature range of 0 °C to +70 °C.
| Address Access Time | 8‑20 ns |
|---|---|
| Chip Select Access Time | 6‑10 ns |
| Power‑ON Reset Capability | Yes |
| Power Consumption (12 ns part) | 830 mW typ. |
| Supply Voltage | 5.0 V ±10% |
It is offered in a standard 28‑pin plastic DIP and a 28‑pin SOJ (300 mil) package.
Yes, the device provides a power‑ON reset capability.
