AE320-PB intelligent pressure transmitter has the characteristics of overload resistance, impact resistance, high precision and good stability, high quality and low price, and can adapt to various industrial applications. It is the crystallization of precision mechanical processing, temperature compensation and analog signal processing technology.

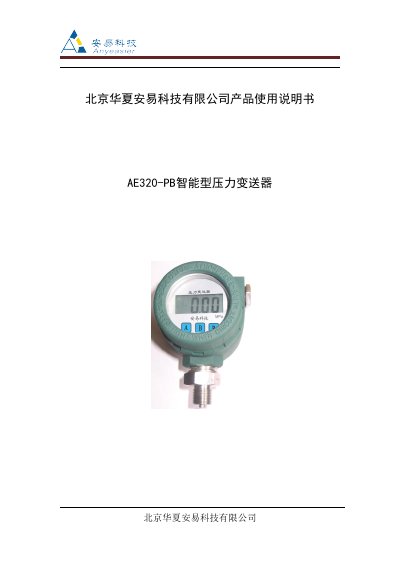

This manual describes the AE320-P series intelligent pressure transmitter produced by Huaxia Anyi. It outlines the device’s high‑precision silicon and ceramic sensor, dual power options, IP65 protection, and explosion‑proof rating, making it suitable for harsh industrial environments such as chemical, petrochemical, and pharmaceutical plants.
The document includes technical specifications, installation guidelines, wiring diagrams, and step‑by‑step procedures for parameter modification and on‑site calibration, as well as a selection table and warranty information. This manual is written in Chinese.
| Measurement range | 0‑50 MPa |
|---|---|
| Accuracy | ±0.2 % ±0.5 % |
| Supply voltage | 24 V DC ±10 % |
| Output signal | 4‑20 mA |
| Operating temperature | -20 °C to +85 °C |
| Operating humidity | 5 %‑95 % non‑condensing |
| Vibration resistance | ≤10 g, ≤55 Hz, ≤0.5 mm amplitude |
| Enclosure rating | IP65 |
| Thread size | M20×1.5 |
The device has a dual‑power mode; when a 24 V DC source is present it supplies the transmitter and outputs a 4‑20 mA signal, otherwise it runs on battery power.
Press the button; pressing it once activates the power‑off mode (battery only), pressing it again disables the mode and returns to normal operation.
