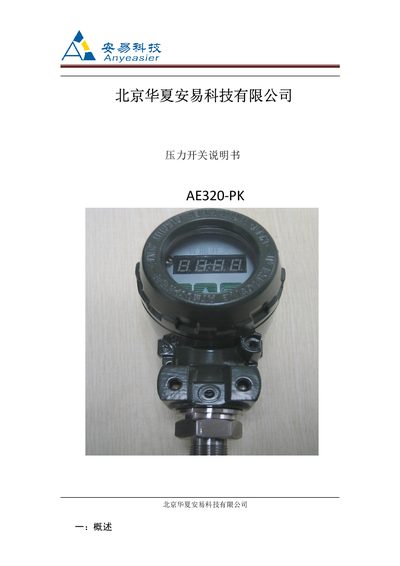

This manual is about AE320-PK series pressure switch. It mainly introduces the product functions, technical parameters, structure, selection table, wiring and button diagram, adjustable pressure switch alarm parameter setting method and other content.
The AE320-PK pressure switch is designed for high‑precision pressure measurement in harsh environments, offering features such as anti‑shock, anti‑corrosion, waterproof and explosion‑proof construction. It is suitable for applications in water, oil, gas and other automated control systems.
The manual describes the functional features, technical parameters, wiring connections, and step‑by‑step operation procedures, including how to set pressure points, delay times, and other configurable parameters. This manual is written in Chinese.
| Supply voltage | 24 V ±10 % |
|---|---|
| Measurement range | 0‑1 MPa (low) and 0‑80 MPa (high) |
| Operating temperature | -20 °C to 85 °C |
| Humidity range | 5 % to 95 % |
| Dry contact capacity | 12 A @ DC 30 V, 12 A @ AC 250 V |
| Long‑term stability | ±0.5 % FS/yr |
| Protection rating | IP65 |
The switch operates from a 24 V supply with a tolerance of ±10 %.
It can measure pressures from 0‑1 MPa in the low range and up to 0‑80 MPa in the high range.
For pressures below 10 MPa, two decimal places are allowed and the third digit can be 0 or 5; for pressures above 10 MPa, two decimal places can be set arbitrarily.
The device works from –20 °C to 85 °C.
