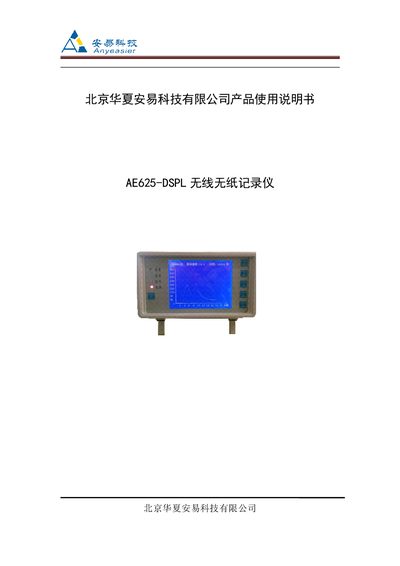

AE625-DSPL Wireless Paperless Recorder is a wireless receiving terminal developed by Beijing Huaxia Anyi Technology Co., Ltd., which can receive wireless pressure, wireless temperature, wireless flow meter and wireless density meter signals and convert them into RS232, RS485 or 4-20mA signal output.
This manual provides an overview of the AE625-DSPL wireless data logger, describing its main functions such as receiving multiple wireless signals, displaying data graphically, and converting signals to RS232, RS485 or 4‑20 mA for connection to PLC, DCS, RTU, PC and other devices. It also outlines the device's technical specifications, communication settings, and key operation buttons.
Installation instructions, power requirements, antenna connection, and detailed explanations of indicator lights and function keys are included, along with contact information for Beijing Huaxia Anyi Technology Co., Ltd. This manual is written in Chinese.
| Supply voltage | 220VAC ±10% |
|---|---|
| Wireless band | 433 MHz |
| Wireless gain | 10 dBm |
| Wireless distance | 500 m |
| Output interfaces | RS232 / RS485 / 4‑20 mA |
| Wired protocol | MODBUS |
| Operating temperature range | -40 °C to +85 °C |
| Operating humidity range | 5 %–95 % non‑condensing |
The device uses the MODBUS protocol for both RS232 and RS485 communication.
It is powered by a 220 V AC supply.
Yes, the AE625-DSPL can output signals as 4‑20 mA in addition to RS232 and RS485.
