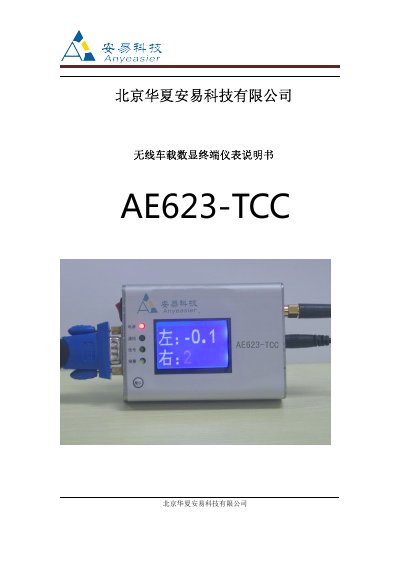

The AE623-TCC wireless vehicle digital display terminal display meter produced by Beijing Huaxianyi Technology Co., Ltd. has overload, shock resistance, high precision and good stability, and is suitable for monitoring the temperature of the left and right tires of various large heavy vehicles during transportation.
The AE623‑TC wireless car digital terminal meter, developed by Beijing Huaxia Anyi Technology in cooperation with Beijing University of Science and Technology, monitors left‑ and right‑tire temperatures on heavy vehicles. It displays temperature values, signal strength, device ID, and alarm information on an LCD screen.
Key functions include dual‑channel temperature display, over‑temperature alarm with buzzer and flashing indicator, parameter and alarm setting interfaces, reset/clear capability, and power options via vehicle charger or an auxiliary AC supply. Technical specifications such as carrier frequency, data rate, gain, power consumption, dimensions, accuracy, operating temperature range, measurement range, and communication interfaces are detailed in the manual. This manual is written in Chinese.
| Carrier frequency | 433 MHz |
|---|---|
| Data rate | 38.4 kbps |
| Gain | 5 dBm or 10 dBm |
| Power consumption | 30 mA |
| Dimensions | 14.5 mm × 33.5 mm |
| Display | LCD |
| Operating temperature range | -10 °C ~ 85 °C |
| Measurement range | -55 °C ~ 155 °C |
| Input signal | Wireless |
| Output signal | RS485/232 |
It can display two channels, showing the left and right tire temperatures simultaneously.
It is powered by the vehicle’s charger and also includes an AC power supply for bench testing when the vehicle is not running.
Yes, the terminal provides a reset/clear function.
