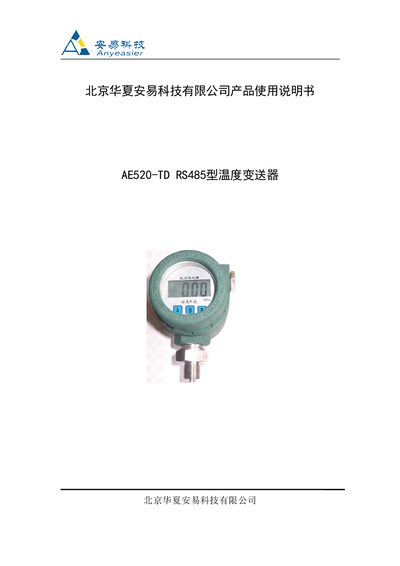

Beijing huaxia technology AE520-TD RS485 temperature transmitter Manual

This document introduces the features and instructions of the AE520-TD RS485 Temperature Transmitter produced by Beijing Huaxia Anyi Technology Co., Ltd.

Brand: Beijing华夏安易
Category: Other
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 514 KB
Published: 21 December, 2011
Updated: 28 September, 2023
MD5 checksum: 3B2869A0095EAEE1A3EFCC8E5185CFB7
PDF: Beijing huaxia technology AE520-TD RS485 temperature transmitter Manual PDF

About this manual

The AE520‑TD is a compact, high‑precision temperature transmitter that supports both PT100 and thermocouple sensors. It offers digital temperature display via LED and outputs data through RS485 using the MODBUS protocol.

The manual provides detailed information on installation dimensions, power options (24 VDC ±10 % or 220 V), wiring diagrams, communication registers, and step‑by‑step procedures for parameter configuration and calibration. This manual is written in Chinese.

What's inside

Features
Technical Specifications
Installation and Dimensions
Communication Protocol
Parameter Setting Instructions
Wiring Diagram
Series Options

Specifications

Model	AE520‑TD
Vibration Resistance	SS10 g, FSS55 Hz, 0.5 mm amplitude

Frequently asked questions

How is temperature displayed on the transmitter?

Temperature is shown digitally on an LED using BCD format, with the high digit for the integer part and the low digit for the decimal part.
