G2R is a power relay of Panasonic Electric Works, which has a variety of models, meets VDE0435, UL508, CSA22.2, SEV, SEMKO standards, meets VDE0700 requirements, the rated current can reach 16A, the rated voltage is 32V, the maximum working frequency is 100kHz, and can be used in household appliances, automobiles, industries and other fields.

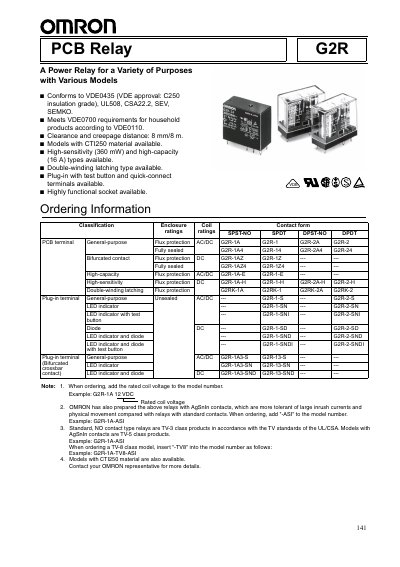

The Omron G2R PCB Relay manual provides detailed information on the G2R series of general‑purpose, high‑capacity, and high‑sensitivity relays. It lists the available contact forms, coil ratings, enclosure types, and ordering codes for each model variant.
The document also covers electrical and mechanical specifications, mounting instructions, socket dimensions, and compliance with standards such as UL508, VDE0435, and CSA22.2. Practical notes on spacing, temperature limits, and shock/vibration resistance are included for designers and installers. This manual is written in Chinese.
| Rated coil voltage | 12 VDC |
|---|---|
| Rated coil current (50 Hz) | 93 mA |
| Coil resistance (12 VDC) | 65 Ω |
| Maximum switching voltage | 380 VAC / 125 VDC |
A minimum of 5 mm spacing is required between adjacent relays to avoid thermal interference.
The coil resistance is 65 Ω.
The maximum switching voltage is 380 VAC (or 125 VDC).
