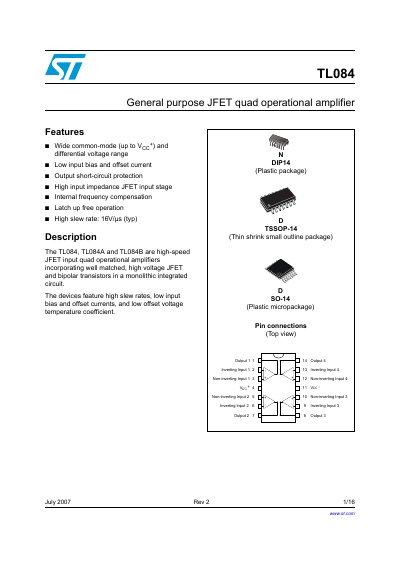

The TL084, TL084A, and TL084B are high-speed JFET input quad operational amplifiers that incorporate well-matched high-voltage JFETs and bipolar transistors in a monolithic integrated circuit. These devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
The TL084, TL084A and TL084B are high‑speed JFET‑input quad operational amplifiers that combine well‑matched high‑voltage JFETs and bipolar transistors in a single monolithic IC. They feature a wide common‑mode range, low input bias and offset currents, internal frequency compensation, and a typical slew rate of 16 V/µs.
The document lists absolute maximum ratings, detailed electrical characteristics such as input offset voltage, bias current, gain‑bandwidth product, and output short‑circuit capability. It also includes typical application circuits, mechanical package dimensions for DIP‑14, SO‑14 and TSSOP‑14, ordering codes, and revision history.
| Supply voltage range | ±18 V (typ) |
|---|---|
| Slew rate (typ) | 16 V/µs |
| Power dissipation | 680 mW |
The TL084 can operate with a supply voltage up to ±18 V, and the specified range is 6 V to 36 V.
The typical slew rate is 16 V/µs.
