The TS93x (single, dual & quad) series are operational amplifiers that can operate with voltages as low as 2.7V and reach output swings of 2.9Vpp with RL = 100kΩ when supplied at 3V. With a typical consumption of only 20µA, they are particularly well-suited for battery-powered applications. Fitting the TS93x onto your board design is very easy because of its space-saving 5-pin SOT23-5 package with outer dimensions of 2.8mm x 2.9mm.
The TS931/TS932/TS934 family provides single, dual and quad operational amplifiers that operate from a single supply as low as 2.7 V and deliver rail‑to‑rail output swing. They feature ultra‑low input bias current (1 pA), low offset (2 mV max for TS93xB) and micropower consumption, making them ideal for battery‑powered and portable applications.

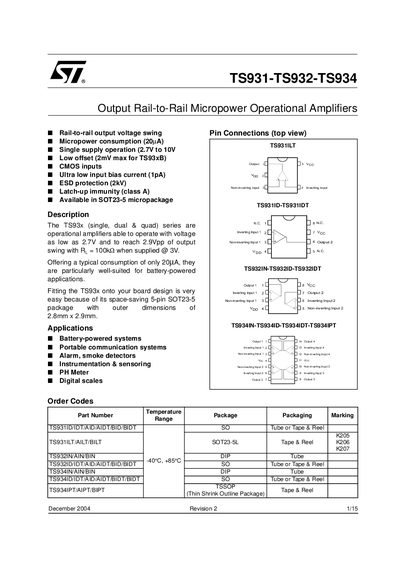

The datasheet lists absolute maximum ratings, detailed electrical characteristics such as supply voltage range, input offset voltage, bias current, gain‑bandwidth product and slew rate, as well as mechanical dimensions of the SOT‑23‑5 package. A summary of changes and ordering information are also provided.
| Supply voltage range | 2.7 V to 10 V |
|---|---|
| Micropower consumption (typical) | 20 µA |
| Package length (A) | 0.90 mm to 1.45 mm |
The amplifiers operate from 2.7 V up to 10 V.
Typical supply current is about 20 µA per amplifier.
