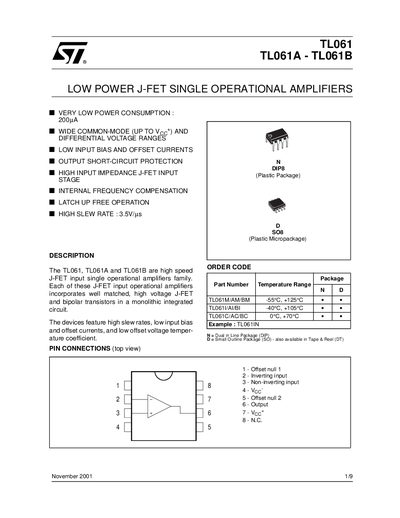

The TL061 is a low power J-FET single operational amplifier family with high input impedance, low bias current, low output impedance and high open loop gain.
The TL061 family comprises low‑power J‑FET input single operational amplifiers with very low input bias and offset currents, high slew rate, and internal frequency compensation. They are offered in several temperature‑grade versions and in both DIP‑8 and SO‑8 packages.
Key electrical parameters include typical input offset voltage of 3 mV, input bias current of 30 pA, slew rate of 3.5 V/µs, and a gain‑bandwidth product of 1 MHz. The devices operate from a single supply up to 15 V and are protected against output short‑circuit conditions.
| Input Bias Current (typical) | 30 pA |
|---|---|
| Input Resistance | 10^12 Ω |
Operating temperature ranges from –55 °C to +125 °C for the –55 °C grade, –40 °C to +105 °C for the –40 °C grade, and 0 °C to +70 °C for the 0 °C grade.
