TPN3021 is a low capacitance transient surge arrestor designed for protection of high debit rate communication network. It has been designed for T1/E1 and Ethernet networks.
The TPN3021 is an application‑specific discrete device that provides tripolar overvoltage protection for high‑speed communication networks such as T1/E1 and Ethernet. It offers low capacitance to avoid signal distortion, a low holding current of 30 mA, and a peak surge capability of up to 200 A.

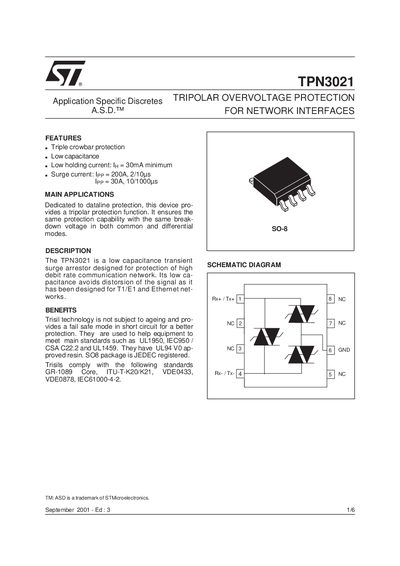

The datasheet lists electrical parameters, absolute ratings, thermal resistances, compliance with standards (GR‑1089 Core, ITU‑T‑K20/K21, VDE0433, VDE0878, IEC61000‑4‑2), and mechanical data for the SO‑8 plastic package, along with ordering information for tape‑and‑reel or tube formats.
| Peak pulse current (Ipp) 2 µs | 200 A |
|---|---|
| Holding current (I_H) minimum | 30 mA |
| Capacitance (C_c) | 16 pF |
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature range (T_sig) | -55 °C to +150 °C |
The device can handle a peak pulse current of 200 A for a 2 µs duration.
The minimum holding current is 30 mA.
It is supplied in an SO‑8 plastic package.
It complies with GR‑1089 Core, ITU‑T‑K20/K21, VDE0433, VDE0878, and IEC61000‑4‑2.
