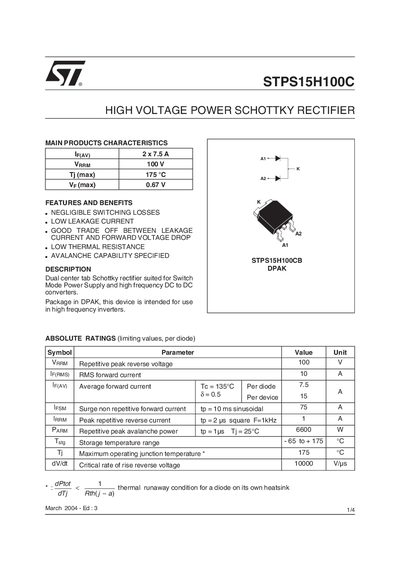

The STPS15H100C is a high voltage power Schottky rectifier from ST. This rectifier is suitable for switch mode power supplies and high frequency DC to DC converters. It features negligible switching losses, low leakage current, a good trade off between leakage current and forward voltage drop, low thermal resistance and avalanche capability.
The STPS15H100C is a high‑voltage power Schottky rectifier designed for use in switch‑mode power supplies and high‑frequency DC‑to‑DC converters. It offers low switching losses, low leakage current, and avalanche capability, making it suitable for high‑frequency inverters.
Key specifications include a repetitive peak reverse voltage of 100 V, average forward current of 7.5 A, maximum forward voltage drop of 0.67 V, and a junction temperature rating up to 175 °C. The device is supplied in a DPAK package with detailed mechanical dimensions and thermal resistance data.
| Repetitive peak reverse voltage (VRRM) | 100 V |
|---|---|
| Maximum forward voltage drop (Vr max) | 0.67 V |
| Maximum junction temperature (Tj max) | 175 °C |
| Junction‑to‑case thermal resistance (Rin‑c) | 4 °C/W |
| Forward voltage drop at 25 °C, IF=7.5 A | 0.8 V |
| Package type | DPAK |
The device can withstand a repetitive peak reverse voltage of 100 V.
The maximum operating junction temperature is 175 °C.
At 7.5 A and 25 °C the forward voltage drop is about 0.8 V.
It is supplied in a DPAK surface‑mount package, available in tube or tape‑and‑reel form.
