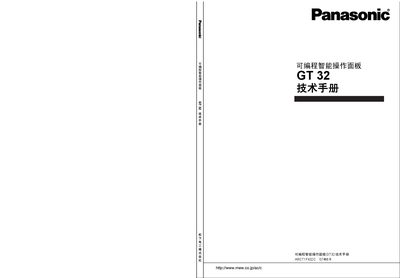

The technical manual for the GT32 programmable intelligent operation panel introduces the product's specifications, connection methods with PLCs, environmental settings, maintenance, and the installation of GTWIN.
The manual provides detailed safety precautions, product specifications, and environmental limits for the GT32 panel. It also describes the setup, wiring, and installation steps required for proper operation.
Additional sections cover PLC connection methods, communication interfaces, touch‑screen settings, maintenance procedures, troubleshooting codes, and the GTWIN programming tool used to create and edit screen data. This manual is written in Chinese.
| Rated Power Supply | 24V DC |
|---|---|
| Operating Voltage Range | 21.6‑26.4V DC |
| Power Consumption (GT32M) | ≤10W (≤410mA) |
| IP Protection | IP65 (initial) |
| Weight (GT32M) | ≈500 g |
| Display Resolution | 320 × 240 pixels |
| Touch Switch Force | < 0.8 N |
| F‑ROM Memory Capacity | 2048 kB |
Approximately 240 screens can be stored.
