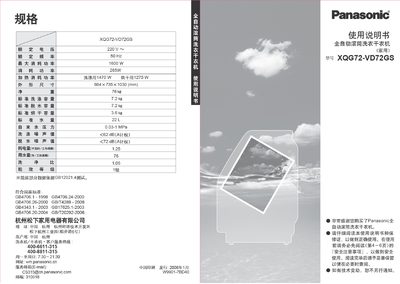

This manual provides detailed safety precautions, operation instructions, and maintenance guidelines for the Panasonic XQG72-VD72GS fully‑automatic washer‑dryer. It covers proper use of programs, detergent handling, and how to lock or unlock the door safely.
Installation sections explain how to connect water inlet and drain pipes, adjust the machine’s level, and verify proper electrical connections. Troubleshooting tips and regular maintenance steps help keep the appliance running efficiently. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Maximum Power Consumption | 1600 W |
| Washing Power Consumption | 265 W |
| Heating Power (Wash) | 1470 W |
| Heating Power (Dry) | 1270 W |
| Dimensions (W×D×H) | 664 × 735 × 1030 mm |
| Net Weight | 76 kg |
| Standard Wash Capacity | 7.2 kg |
| Standard Spin Capacity | 7.2 kg |
| Standard Dry Capacity | 3.6 kg |
| Water Consumption per Cycle | 221 L |
| Water Pressure Requirement | 0.03–1 MPa |
| Washing Noise Level | <62 dB(A) |
| Spin Noise Level | <72 dB(A) |
| Energy Efficiency Class | 1 |
Press the door lock/unlock button; the door will lock automatically during operation and unlock after the cycle finishes or when power is turned off.
The appliance requires a water pressure between 0.03 and 1 MPa.
Do not connect water hotter than 50 °C; using hotter water may cause damage.
A standard wash program takes about 58 minutes; faster programs may be shorter.
