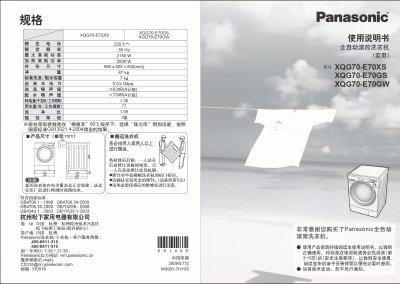

The manual begins with safety precautions and installation guidelines, emphasizing the need for two people to move the machine, proper leveling, and correct connection of water and power supplies. It also details the functions of each control button and how to select washing programs and additional features.
Subsequent sections cover the proper use of detergent, program settings, troubleshooting, and routine maintenance such as cleaning the filter, checking for leaks, and adjusting the machine legs. Installation checklists and leak‑detection features are also described. This manual is written in Chinese.
| 额定电压 | 220V |
|---|---|
| 额定频率 | 50 Hz |
| 最大消耗功率 | 2150 W |
| 加热消耗功率 | 2000 W |
| 外形尺寸 (宽×深×高) | 596 x 625 x 845 mm |
| 净重 | 87 kg |
| 标准洗涤/脱水容量 | 7 kg |
| 自来水压力范围 | 0.03‑1 MPa |
| 洗涤噪声值 | 62 dB(A) |
| 脱水噪声值 | <72 dB(A) |
| 每工作周期耗电量 | 1.26 kWh |
| 每工作周期用水量 | 77 L |
| 洗净比 | 1.05 |
| 能效等级 | 1级 |
The machine is designed for water pressure between 0.03 MPa and 1.0 MPa; if your pressure is higher, install a pressure‑reducing valve.
