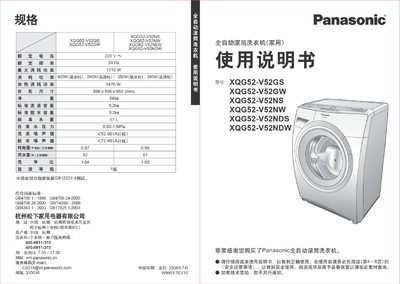

This manual covers safety precautions, proper installation of water inlet and drain hoses, and how to set up the machine for use. It explains the operation of the control panel, selection of wash programs, and recommended detergent and softener usage.
Additional sections describe routine maintenance, troubleshooting tips, and how to adjust the machine’s level and foot height. The document also includes specifications such as power consumption, dimensions, and noise levels for the XQG52‑V52 series models. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Maximum Power Consumption | 1710 W |
| Heating Power | 1470 W |
| Spin Power (spin only) | 400 W |
| Dimensions (W×D×H) | 596 mm × 596 mm × 850 mm |
| Net Weight | 66 kg |
| Standard Wash Capacity | 5.2 kg |
| Standard Spin Capacity | 5.2 kg |
| Water Consumption per Cycle | 52 L |
| Electricity Consumption per Cycle | 0.97 kWh |
| Water Pressure Range | 0.03 – 1 MPa |
| Wash Noise Level | <62 dB(A) |
| Spin Noise Level | <72 dB(A) |
| Energy Efficiency Class | 1 |
The maximum spin speed is 800 rpm.
Models V52NS/NW and V52NDS/NDW do not have a sterilization program.
The machine is designed for water pressure between 0.03 MPa and 1 MPa.
The net weight of the machine is 66 kg.
