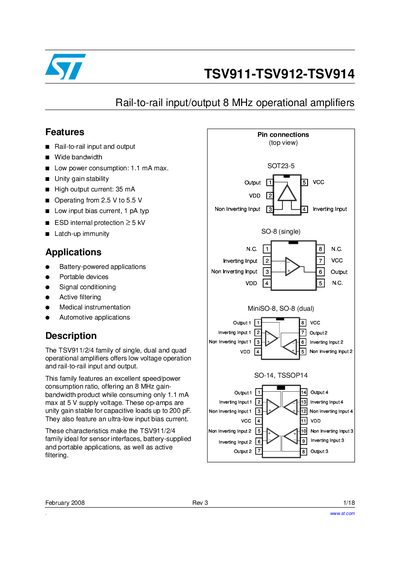

This document describes the TSV911/2/4 family of single, dual and quad operational amplifiers, which offer low voltage operation and rail-to-rail input and output. These op-amps feature an excellent speed/power consumption ratio, offering an 8 MHz gain-bandwidth product while consuming only 1.1 mA max at 5 V supply voltage. This family is ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
The TSV911/TSV912/TSV914 family offers rail‑to‑rail input and output, low power consumption (1.1 mA max) and high output current (35 mA). It is suited for battery‑powered, portable, medical, automotive and signal‑conditioning applications.
The document lists absolute maximum ratings, operating conditions, and detailed electrical characteristics such as supply voltage range (2.5 V‑5.5 V), unity‑gain bandwidth (8 MHz), input bias current (1 pA typ), and slew rate (4.5 V/µs) for various package options (SOT‑23‑5, SO‑8, MiniSO‑8, TSSOP‑14).
| Supply voltage range | 2.5 V to 5.5 V |
|---|---|
| High output current | 35 mA |
| Gain‑bandwidth product | 8 MHz |
| Input bias current | 1 pA typ |
The devices operate from 2.5 V up to 5.5 V.
They can source or sink up to 35 mA.
The gain‑bandwidth product is 8 MHz.
The typical input bias current is 1 pA.
