MCP6021/2/3/4 are operational amplifiers (op amps) introduced by Microchip Technology Inc. They have features such as rail-to-rail input/output, wide bandwidth, low noise, and low offset voltage.
The MCP6021/2/3/4 family from Microchip Technology provides rail‑to‑rail input and output operational amplifiers with a 10 MHz gain‑bandwidth product, low noise (8.7 nV/√Hz at 10 kHz) and low offset voltage. Available in single, dual and quad configurations, the devices support supply voltages from 2.5 V to 5.5 V and operate over industrial (‑40 °C to +85 °C) and extended (‑40 °C to +125 °C) temperature ranges.

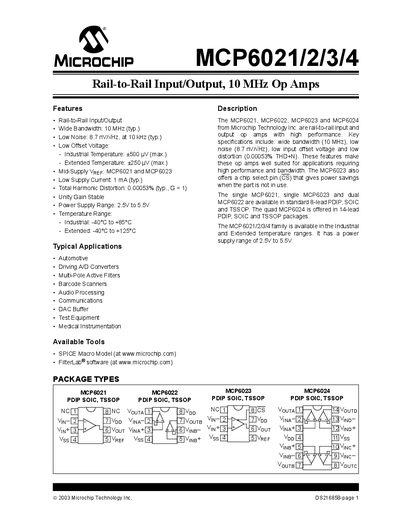

The datasheet includes detailed electrical characteristics, absolute maximum ratings, typical performance curves, and product identification tables for ordering. It also provides application notes, chip‑select functionality for the MCP6023, and contact information for sales and support.
| Power Supply Range | 2.5 V to 5.5 V |
|---|---|
| Gain Bandwidth Product | 10 MHz |
| Input Offset Voltage (Industrial) | ‑500 µV to +500 µV |
| Input Offset Voltage (Extended) | ‑250 µV to +250 µV |
| Total Harmonic Distortion + Noise | 0.00053 % (typ.) |
| Input Noise Voltage Density | 8.7 nV/√Hz at 10 kHz |
| Quiescent Current per Amplifier | 0.5 mA to 1.35 mA (typ.) |
The devices operate with a supply voltage from 2.5 V to 5.5 V.
The typical gain‑bandwidth product is 10 MHz.
Industrial range is ‑40 °C to +85 °C; extended range is ‑40 °C to +125 °C.
Typical quiescent current is between 0.5 mA and 1.35 mA per amplifier.
