This document introduces the features of the MCP14E3/MCP14E4/MCP14E5 series devices, including high peak output current, independent enable function, low switch current, wide input supply voltage range, high capacitive load drive capability, short delay time, latch-up protection and so on. These devices are used in switch mode power supplies, pulse transformer drives, line drivers, motor and solenoid drives.

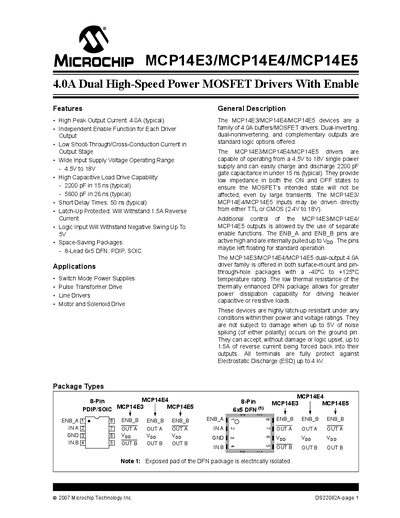

The MCP14E3/E4/E5 devices are a family of dual 4.0 A MOSFET drivers offering independent enable functions, low shoot‑through current, and latch‑up protection. They operate from a single 4.5 V to 18 V supply and can charge/discharge 2200 pF loads in under 15 ns.
The drivers are available in 8‑lead 6×5 DFN, PDIP, and SOIC packages, rated for –40 °C to +125 °C operation. Electrical specifications include typical rise/fall times of 15 ns/18 ns, propagation delay around 46 ns, and high‑speed capacitive load drive capability suitable for switch‑mode power supplies, line drivers, and motor/solenoid drives.
| Peak Output Current | 4.0 A (typical) |
|---|---|
| Supply Voltage Range | 4.5 V to 18 V |
| Capacitive Load Drive Capability | 2200 pF in 15 ns (typical) |
| Rise Time | 15 ns (typical) |
| Fall Time | 18 ns (typical) |
| Propagation Delay | 46 ns (typical) |
| Enable High‑Level Input Voltage | 1.6 V (typical) |
| Enable Low‑Level Input Voltage | 1.3 V (typical) |
| Operating Temperature Range | -40 °C to +125 °C |
The drivers can source up to 4.0 A of peak output current (typical).
They operate from a single supply voltage between 4.5 V and 18 V.
They can charge 2200 pF in about 15 ns (typical).
The devices are rated for –40 °C to +125 °C operation.
