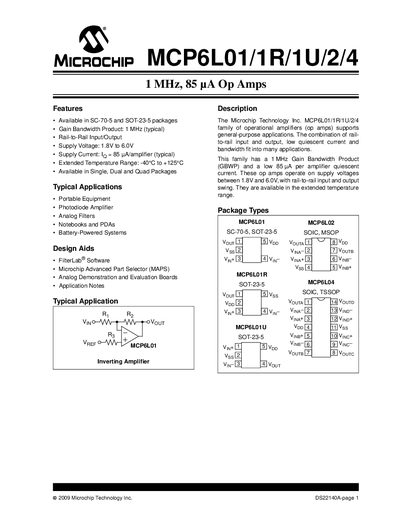

MCP6L01/1R/1U/2/4 is a low power, high gain, low noise, linear operational amplifier, which adopts SC-70-5 and SOT-23-5 packages, with a supply voltage range of 1.8V to 6.0V, and can be applied to portable equipment, photodiode amplifier, analog filters, notebooks and PDAs, battery-powered systems.
The MCP6L01/1R/1U/2/4 family provides low‑quiescent‑current, rail‑to‑rail input and output operational amplifiers for portable and battery‑powered equipment. Available in SC‑70‑5, SOT‑23‑5, SOIC, MSOP and TSSOP packages, the devices operate from 1.8 V to 6.0 V and cover an extended temperature range of –40 °C to +125 °C.
Key electrical characteristics include a 1 MHz gain‑bandwidth product, typical quiescent current of 85 pA per amplifier, and input offset voltage of about 5 mV. The datasheet also details AC performance, thermal specifications, and typical application circuits such as inverting amplifiers and photodiode amplifiers.
| Gain Bandwidth Product | 1 MHz (typical) |
|---|---|
| Supply Voltage Range | 1.8 V to 6.0 V |
| Quiescent Current | 85 pA per amplifier (typical) |
| Input Offset Voltage | 5 mV (typical) |
| Input Bias Current | 2 pA (typical) |
| Power Supply Rejection Ratio (PSRR) | 83 dB |
| Common‑Mode Rejection Ratio (CMRR) | 78 dB |
| Input Noise Voltage (0.1 Hz‑10 Hz) | 6 µV rms |
| Output Short‑Circuit Current | 20 mA |
| Operating Temperature Range | –40 °C to +125 °C |
The devices operate from 1.8 V up to 6.0 V.
Typical quiescent current is 85 pA per amplifier.
The gain‑bandwidth product is 1 MHz (typical).
They are specified for –40 °C to +125 °C operation.
