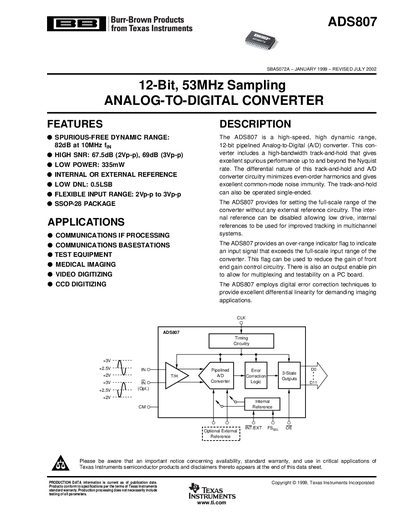

ADS807 is a high-precision, high dynamic range, 12-bit, 53MHz sampling analog-to-digital converter.
The ADS807 is a 12‑bit, 53 MHz pipelined analog‑to‑digital converter offering high dynamic range, low power consumption, and flexible input options. It includes an internal reference, over‑range indicator, and can operate with single‑ended or differential inputs.
The document contains absolute maximum ratings, detailed electrical characteristics, pin descriptions, timing diagrams, typical performance graphs, and packaging options. It also includes legal notices, warranty information, and ordering details for the SSOP‑28 package.
| Resolution | 12 bits |
|---|---|
| Maximum Sample Rate | 53 Msps |
| Supply Voltage (operating) | +5 V |
| Supply Current (operating) | 60 mA |
| Signal‑to‑Noise Ratio (2 V p‑p input) | 67.5 dB |
| Spurious‑Free Dynamic Range | 83 dBFS |
The ADS807 can sample at up to 53 Msps.
The device draws about 60 mA when operating at +5 V.
