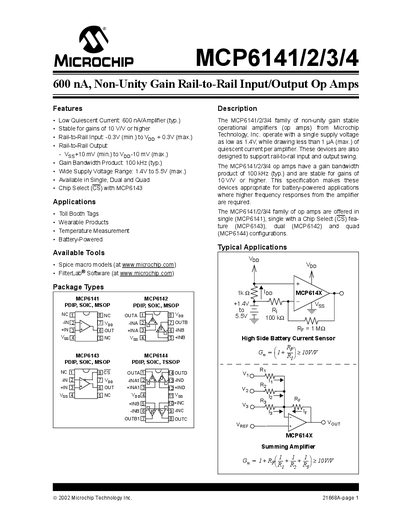

The MCP6141/2/3/4 is a low quiescent current, stable operational amplifier that can operate from a single supply voltage as low as 1.4V. This device features a gain bandwidth product of 100kHz and is stable for gains of 10V/V or higher.
The MCP6141/2/3/4 family are low‑quiescent (600 nA) non‑unity‑gain operational amplifiers that operate from a single supply as low as 1.4 V and support rail‑to‑rail input and output swings. They are offered in single (MCP6141), single with chip‑select (MCP6143), dual (MCP6142) and quad (MCP6144) configurations and are stable for gains of 10 V/V or higher.
The datasheet provides detailed electrical characteristics, including a 100 kHz gain‑bandwidth product, typical input offset voltage of ±3 mV, and a wide supply range of 1.4 V to 5.5 V. Package options include PDIP, SOIC, MSOP and TSSOP, and the document lists typical applications such as toll‑booth tags, wearable products, temperature measurement, and battery‑powered designs.
| Quiescent Current | 600 nA per amplifier (typ.) |
|---|---|
| Supply Voltage Range | 1.4 V to 5.5 V (max.) |
| Gain Bandwidth Product | 100 kHz (typ.) |
| Input Voltage Range | -0.3 V to Vpp + 0.3 V |
| Output Voltage Swing | Vss + 10 mV to Vop – 10 mV |
| Input Offset Voltage | ±3.0 mV (max) |
| Input Bias Current | 1.0 pA (typ.) |
| Common‑Mode Rejection Ratio | 80 dB (typ.) |
| Power Supply Rejection Ratio | 85 dB (typ.) |
The MCP6141/2/3/4 op‑amps draw about 600 nA per amplifier (typ.).
They operate from 1.4 V up to 5.5 V.
Yes, they are stable for gains of 10 V/V or higher.
