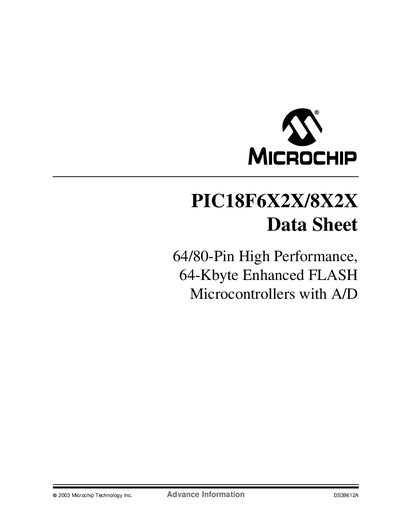

Introduces the DS39612A PIC18F6X2X/8X2X 64/80-Pin High Performance, 64-Kbyte Enhanced FLASH Microcontrollers with A/D
This datasheet describes the PIC18F6X2X/8X2X family of 64‑ and 80‑pin high‑performance microcontrollers. It details the 8‑bit RISC CPU, up to 64 KB enhanced FLASH, 1 KB data EEPROM, 4 KB RAM, 10‑bit 16‑channel ADC, and a rich set of peripherals such as timers, PWM modules, MSSP, and USARTs.
The document includes pin‑out diagrams, a full table of contents, electrical characteristics, packaging information, and revision history. It also provides notes on code protection, programming methods (ICSP), and how to obtain errata or the latest version from Microchip’s website.
| Package pins | 64‑pin TQFP and 80‑pin TQFP |
|---|---|
| Program memory size | 64 KB FLASH |
| Data EEPROM size | 1 KB |
| Maximum CPU speed | 40 MHz |
| I/O pin current capability | 25 mA sink/source |
| ADC resolution | 10‑bit, up to 16 channels |
| Supply voltage range | 2.0 V to 5.5 V |
| Temperature range | Industrial and Extended |
The notice states that code protection is not guaranteed unbreakable and that attempting to breach it may violate the Digital Millennium Copyright Act.
It can be programmed using In‑Circuit Serial Programming (ICSP) via two dedicated pins.
