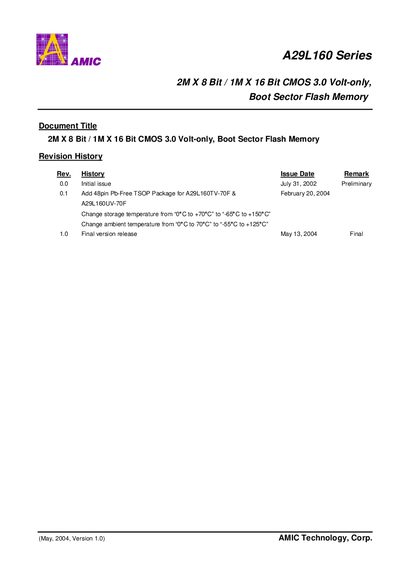

A29L160 Series 2M X 8 Bit / 1M X 16 Bit CMOS 3.0 Volt-only, Boot Sector Flash Memory
The A29L160 series provides 16 Mbit of non‑volatile storage organized as 2 M × 8‑bit or 1 M × 16‑bit words. It operates from a single 3.0 V supply and is compatible with JEDEC single‑power‑supply flash standards. The device includes embedded erase and program algorithms, sector protection, and automatic sleep mode to reduce power consumption.
Available in 48‑ball FBGA, 44‑pin SOP and 48‑pin TSOP packages, the A29L160 supports full‑chip erase, sector erase, and unlock‑bypass programming for faster write times. It is designed for battery‑powered applications and can be programmed in‑system without an additional VPP voltage.
| Memory capacity | 16 Mbit (2 M × 8‑bit or 1 M × 16‑bit) |
|---|---|
| Supply voltage (VCC) | 2.7 V – 3.6 V |
| Active read current | 9 mA (typical) |
| Program/erase current | 20 mA (typical) |
| Standby current | 200 nA (typical) |
| Access time | 70 ns / 90 ns / 120 ns (max) |
| Typical program/erase cycles | 100 000 cycles per sector |
| Package options | 48‑ball FBGA, 44‑pin SOP, 48‑pin TSOP |
The device operates from 2.7 V to 3.6 V.
Each sector is rated for about 100 000 program/erase cycles.
Typical standby current is 200 nA.
