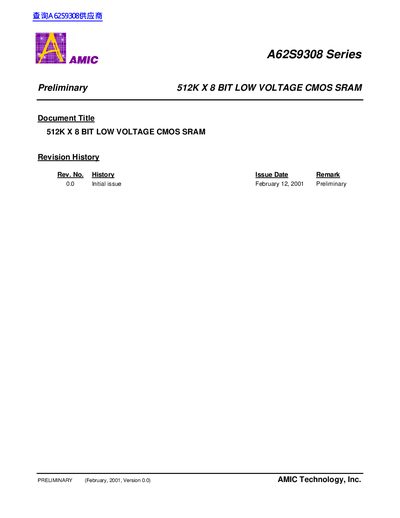

This document introduces the features and characteristics of AMIC Technology's A62S9308 series 512K X 8-bit low voltage CMOS SRAM. The features of this product include power supply range of 2.7V to 3.6V, access time of 70ns (max.), operating current of 40mA (max.), standby current of 10µA (max.), etc.
The A62S9308 series is a low‑power 512 K × 8‑bit CMOS static RAM offered by AMIC Technology. It operates from a 2.7 V to 3.6 V supply and features TTL‑compatible inputs and three‑state outputs for easy bus interfacing.
The document provides detailed electrical characteristics, timing diagrams, package dimensions, and pin descriptions for SOP, TSOP, sTSOP, and Mini‑BGA variants, along with recommended operating conditions and absolute maximum ratings.
| Supply Voltage | 2.7 V – 3.6 V |
|---|---|
| Access Time (max) | 70 ns |
| Operating Current (max) | 40 mA |
| Standby Current (max) | 10 µA |
| Operating Temperature Range | -25 °C to +85 °C |
| Package Types | 32‑pin SOP, TSOP, sTSOP, 36‑ball Mini BGA |
It operates from 2.7 V to 3.6 V.
The maximum access time is 70 ns.
Standby current is up to 10 µA, and operating current is up to 40 mA.
It is offered in 32‑pin SOP, TSOP, sTSOP, and a 36‑ball Mini BGA package.
