SCES516E is a dual-bit noninverting bus transceiver that uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional dual-channel communication with data rates up to 420 Mbps.
The SN74LVC2T45 from Texas Instruments is a dual‑bit, dual‑supply bus transceiver that supports bidirectional voltage translation between 1.8 V, 2.5 V, 3.3 V and 5 V nodes. Each port can operate over a 1.65 V to 5.5 V supply range and features partial‑power‑down mode, high‑impedance isolation, and ESD protection.

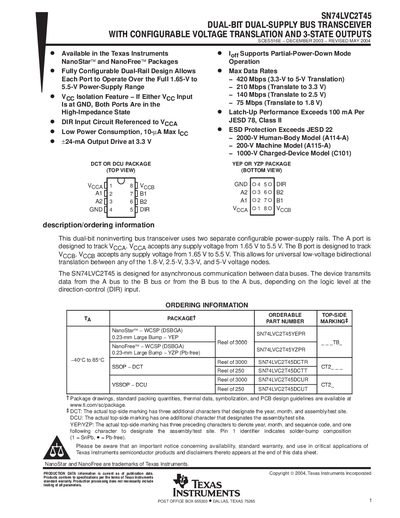

The datasheet provides detailed electrical and switching characteristics, recommended operating conditions, mechanical package drawings, and ordering information for NanoStar™ and NanoFree™ package options. It also includes the standard TI warranty and important notice about product availability.
| Supply voltage range (VCCA/VCCB) | 1.65 V to 5.5 V |
|---|---|
| Maximum data rate (3.3‑V to 5‑V translation) | 420 Mbps |
| Output drive current at 3.3 V | +24 mA |
| ESD protection (Human‑Body Model) | 2000 V |
Each port can operate over a full 1.65 V to 5.5 V power‑supply range.
The device supports up to 420 Mbps when translating from 3.3 V to 5 V.
The SN74LVC2T45 can drive up to +24 mA at a 3.3 V supply.
It meets 2000 V Human‑Body Model, 200 V Machine Model, and 1000 V Charged‑Device Model ratings.
