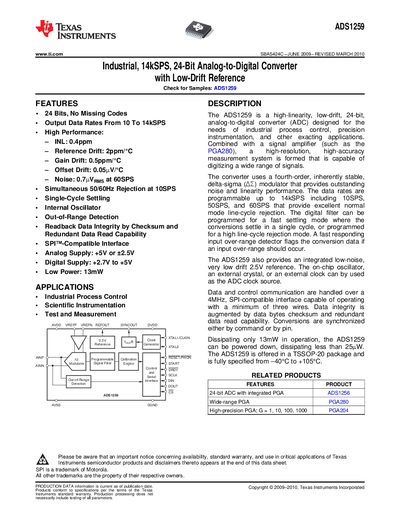

The ADS1259 is a high-linearity, low-drift, 24-bit, analog-to-digital converter (ADC) designed for the needs of industrial process control, precision instrumentation, and other exacting applications.
The ADS1259 is a high‑linearity, 24‑bit analog‑to‑digital converter designed for industrial process control, precision instrumentation and test‑and‑measurement applications. It provides a selectable data‑rate from 10 SPS up to 14.4 kSPS and includes an integrated low‑noise 2.5 V reference.
Key features include a SPI‑compatible 4‑wire interface with checksum and redundant read capability, on‑chip oscillator or external clock options, low power consumption (13 mW active, <25 µW power‑down), and operation over a wide temperature range (‑40 °C to +125 °C). The device is supplied in a TSSOP‑20 package.
| Resolution | 24 bits |
|---|---|
| Maximum Sample Rate | 14.4 kSPS |
| Reference Drift | 2 ppm/°C |
| Gain Drift | 0.5 ppm/°C |
| Noise (6 SPS) | 0.7 µV rms |
| Power Consumption (active) | 13 mW |
| Operating Temperature Range | ‑40 °C to +125 °C |
| Package | TSSOP‑20 |
The ADS1259 can sample up to 14.4 kSPS (14 kSPS) depending on the selected data‑rate.
It dissipates only 13 mW while operating and less than 25 µW in power‑down mode.
The device uses a SPI‑compatible 4‑wire serial interface with checksum and redundant data read capability.
It operates from –40 °C up to +125 °C.
