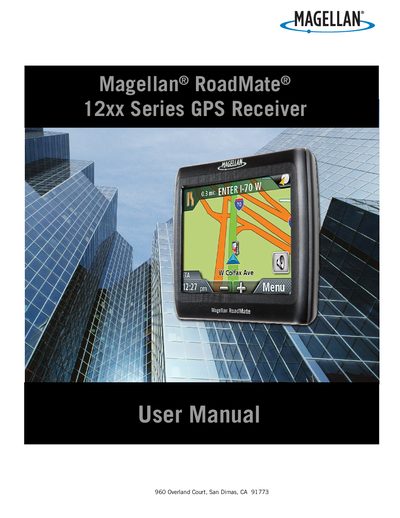

Magellan RoadMate 12xx Series GPS Receiver User Manual

About this manual

This manual begins with important safety warnings for the Magellan RoadMate GPS receiver, covering windshield‑mount regulations, temperature limits, and battery handling. It also explains FCC and IC compliance requirements and cautions about interference.

The remainder of the guide details installation procedures, mounting the cradle, connecting power, configuring settings, and using navigation features such as map screens, address book, points of interest, and traffic alerts. It includes troubleshooting tips and information on battery charging and replacement.

What's inside

• Safety Warnings
• Installation Instructions
• Mounting the Car Cradle
• Connecting Power and Cable Routing
• Powering On and Brightness Settings
• Main Menu and Navigation Screens
• Address Book and OneTouch Features
• Points of Interest and Traffic Alerts
• Battery Charging and Maintenance
• Regulatory Compliance (FCC/IC)

Specifications

Frequently asked questions

What is the maximum operating temperature for the RoadMate receiver?

The receiver can operate up to 140 °F (60 °C).

How long does it take to fully charge the battery?

It takes about six hours using the vehicle power adapter or the optional AC adapter.

Are there any restrictions on mounting the device on the windshield?

Yes, users must check state regulations because some states prohibit windshield mounting.
