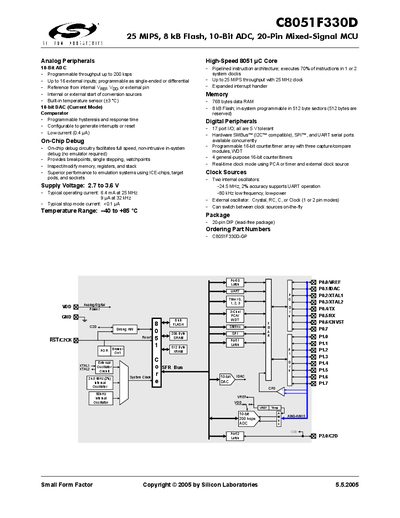

This document introduces a small form factor product released by Silicon Laboratories in 2005. The product features 8kB flash, 256-byte SRAM, 10-bit ADC, and 10-bit DAC.
The C8051F330D is a 20‑pin mixed‑signal microcontroller featuring a 25 MIPS 8051 core, 8 kB flash memory, 10‑bit ADC and DAC, and a range of digital peripherals such as UART, SPI, I²C‑compatible SMBus, and multiple timers. It operates from a supply voltage of 2.7 V to 3.6 V and includes on‑chip debug circuitry for full‑speed, non‑intrusive debugging.
Key analog features include a programmable 10‑bit ADC with up to 200 ksps throughput and a current‑mode 10‑bit DAC. The device also provides a comparator with programmable hysteresis, a built‑in temperature sensor, and flexible clock sources that can be switched on‑the‑fly.
| Supply Voltage | 2.7 V – 3.6 V |
|---|---|
| Typical Operating Current (25 MHz) | 6.4 mA |
| Flash Memory | 8 kB |
| ADC Resolution | 10 bits |
| DAC Resolution | 10 bits |
| Maximum Clock Frequency | 25 MHz |
| ADC Throughput | 200 ksps |
The device operates from 2.7 V to 3.6 V.
The 10‑bit ADC can sample at up to 200 ksps.
It includes 8 kB of flash memory.
On‑chip debug circuitry provides breakpoints, single stepping, watchpoints, and memory/stack inspection without an external emulator.
