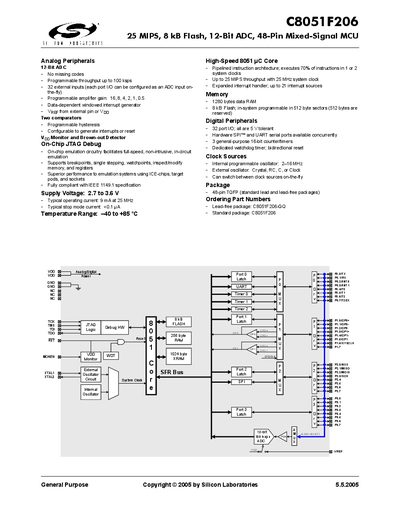

The C8051F206 is a 25 MIPS, 8 kB Flash, 12-Bit ADC, 48-Pin Mixed-Signal MCU
This manual describes the C8051F206 48‑pin mixed‑signal microcontroller, highlighting its 25 MIPS core, 8 kB Flash, 12‑bit ADC, and extensive analog and digital peripherals. It includes information on the on‑chip JTAG debug interface, clock source options, and package details.
Key sections cover analog peripherals such as the 12‑bit ADC and comparators, digital peripherals like SPI, UART, timers, and I/O ports, as well as electrical specifications, memory organization, and ordering part numbers. The document serves both hardware designers and firmware developers needing detailed technical data.
| Supply Voltage | 2.7 V to 3.6 V |
|---|---|
| Typical Operating Current (25 MHz) | 9 mA |
| Flash Memory | 8 kB |
| Data RAM | 1280 bytes |
| ADC Resolution | 12 bits |
| ADC Throughput Rate | 100 ksps |
| Maximum Clock Frequency | 25 MHz |
| Package Type | 48‑pin TQFP |
The device operates from 2.7 V to 3.6 V.
The ADC can be configured on‑the‑fly for up to 32 external inputs.
Typical operating current is 9 mA at a 25 MHz clock.
