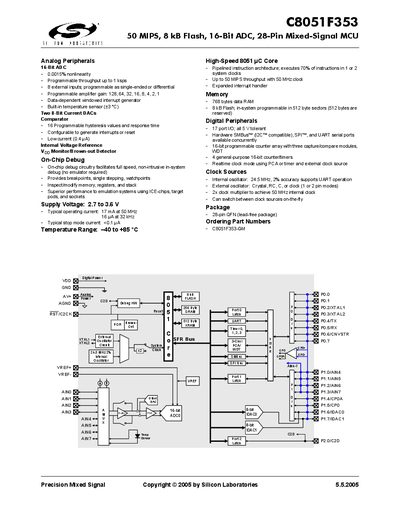

C8051F353 is a 50 MIPS, 8 kB Flash, 16-Bit ADC, 28-Pin Mixed-Signal MCU.
The C8051F353 is a 28‑pin mixed‑signal microcontroller from Silicon Labs featuring a high‑speed 8051 core, up to 50 MIPS performance, 8 kB flash memory and a 16‑bit ADC with programmable gain. It includes on‑chip debug, multiple digital peripherals (UART, SPI, SMBus/I²C) and a flexible clock system with internal and external sources.
Key specifications include a supply voltage range of 2.7 V to 3.6 V, typical operating current of 17 mA at 50 MHz, and a temperature range of –40 °C to +85 °C. The ADC offers 16‑bit resolution with ±15 ppm INL and 110 dB CMRR, while the DACs provide 8‑bit resolution. The device is supplied in a lead‑free 28‑pin QFN package.
| Supply Voltage | 2.7 V to 3.6 V |
|---|---|
| Typical Operating Current (50 MHz) | 17 mA |
| Typical Stop‑Mode Current | <0.1 pA |
| Temperature Range | -40 °C to +85 °C |
| Flash Memory | 8 kB |
| Data RAM | 768 bytes |
| ADC Resolution | 16 bits |
| ADC Integral Nonlinearity (single‑ended) | +15 ppm FS |
| ADC Offset Error | +5 ppm |
| ADC Gain Error | +0.002 % |
| ADC Common‑Mode Rejection Ratio | 110 dB |
| DAC Resolution | 8 bits |
| DAC Integral Nonlinearity | +0.5 LSB |
| Package Type | 28‑pin QFN (lead‑free) |
The device operates from 2.7 V to 3.6 V.
It includes 8 kB of flash memory.
The ADC provides 16‑bit resolution.
Typical current consumption is 17 mA at 50 MHz.
