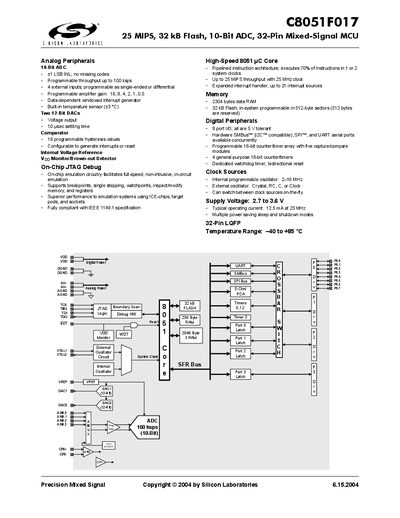

The C8051F017 is a 25MIPS, 32kB Flash, 10-Bit ADC, 32-Pin Mixed-Signal MCU.
This manual describes the Silicon Laboratories C8051F017 mixed‑signal MCU, highlighting its 25 MIPS 8051 core, 32 kB flash, 10‑bit ADC, two 12‑bit DACs, comparators, and on‑chip JTAG debug capabilities. It outlines the analog and digital peripheral blocks, memory organization, clock sources, and power‑saving modes.
The document also lists the selected electrical specifications, including supply voltage ranges, current consumption, temperature limits, and package dimensions, enabling designers to integrate the device into their applications with confidence.
| CPU speed | Up to 25 MIPS |
|---|---|
| Flash memory | 32 kB |
| ADC resolution | 10‑bit |
| DAC resolution | 12‑bit |
| Supply voltage | 2.7 V to 3.6 V |
| Operating temperature range | -40 °C to +85 °C |
| Typical operating current | 12.5 mA at 25 MHz |
The ADC is a 10‑bit converter.
It supports up to 21 interrupt sources.
The device operates from 2.7 V to 3.6 V.
The core can achieve up to 25 MIPS at a 25 MHz clock.
