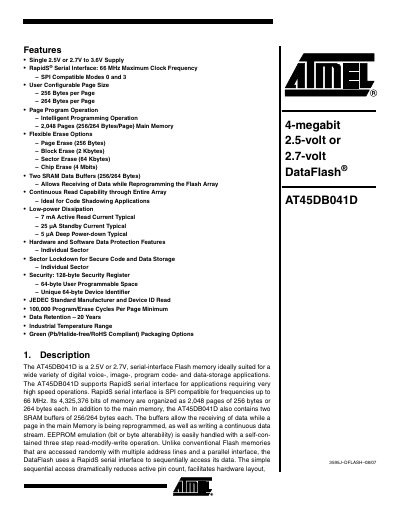

AT45DB041D is a 2.5V or 2.7V serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. It features flexible erase options, low power dissipation, and hardware and software data protection features.
The AT45DB041D is a 4‑megabit serial‑interface flash memory that operates from a single 2.5 V or 2.7 V supply up to 3.6 V. It offers a RapidS® serial interface with up to 66 MHz clock frequency, two SRAM buffers, and flexible erase options (page, block, sector, chip). The device is designed for low‑power, high‑density applications such as voice, image, code, and data storage.
The document details pin configurations, memory architecture (sectors, blocks, pages), and the full set of read, program, and erase commands. It includes timing diagrams, electrical characteristics, and programming procedures, enabling designers to integrate the AT45DB041D into commercial and industrial systems.
| Supply Voltage | 2.5 V–3.6 V (or 2.7 V–3.6 V) |
|---|---|
| Memory Capacity | 4 Mbit (4,325,376 bits) |
| Page Size | 256 Bytes or 264 Bytes per page |
| Number of Pages | 2,048 pages |
| Active Read Current | 7 mA typical |
| Standby Current | 25 pA typical |
| Program/Erase Cycles | 100,000 per page minimum |
| Data Retention | 20 years |
It operates from a single 2.5 V or 2.7 V supply up to 3.6 V.
The device contains 2,048 pages of memory.
The RapidS serial interface supports up to 66 MHz clock frequency.
Each page is rated for at least 100,000 program/erase cycles.
