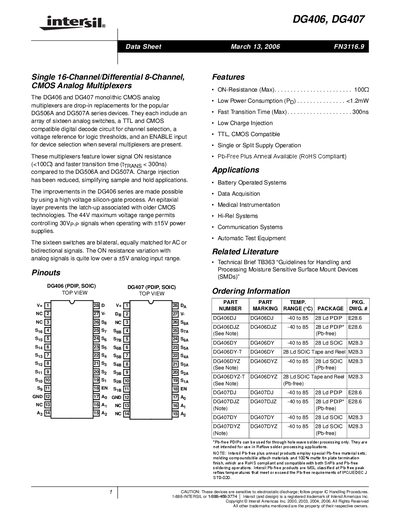

DG406, DG407 Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers
The DG406 and DG407 are 16‑channel CMOS analog multiplexers with TTL/CMOS compatible digital decode, an ENABLE input and a wide voltage range. They replace the older DGS506A/DG507A parts and feature reduced ON resistance and faster switching.
The devices operate from –40 °C to 85 °C, draw less than 1.2 mW of power, and are available in PDIP and SOIC packages. Typical applications include battery‑operated systems, data acquisition, medical instrumentation and automatic test equipment.
| ON‑Resistance (max) | <100 Ω |
|---|---|
| Transition Time (max) | <300 ns |
| Maximum Supply Voltage | 44 V |
| Charge Injection | Low |
| Package Types | PDIP, SOIC |
The devices support a maximum voltage range of 44 V.
The ON resistance is less than 100 Ω.
The transition time is less than 300 ns.
