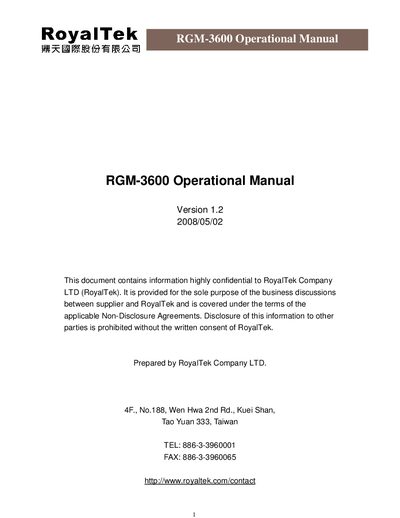

This document is the operational manual for the RGM-3600 GPS receiver from RoyalTek. It describes the features and characteristics of the product, including GPS applications, connectivity options, and navigation capabilities.
The RGM-3600 is a GPS receiver offering 20 parallel channels, high sensitivity, and support for SBAS. It is designed for navigation, surveying, and vehicle tracking applications.
The manual includes a system block diagram, technique specifications, mechanical layout, hardware interface pin definitions, power consumption data, environmental limits, package information, and revision history, helping users install, configure, and operate the device.
| Frequency L1 | 1575.42 MHz |
|---|---|
| Channels | 20 |
| Sensitivity | -159 dBm |
| Cold start time | 35 s @ open sky |
| Warm start time | 35 s @ open sky |
| Hot start time | 1 s @ open sky |
| Position accuracy | 10 m 2D RMS |
| Maximum altitude | 18000 m |
| Maximum velocity | 514 m/s |
| Supply voltage | 5 V DC ±5 % |
| Acquisition current | 55 mA typical |
| Tracking current | 50 mA typical |
| Backup battery capacity | 3.3 mAh Li‑ion |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -20 °C to +60 °C |
| Humidity tolerance | 95 % RH |
The receiver has a sensitivity of -159 dBm.
It supports 20 parallel channels.
The device operates from -20 °C to +60 °C.
