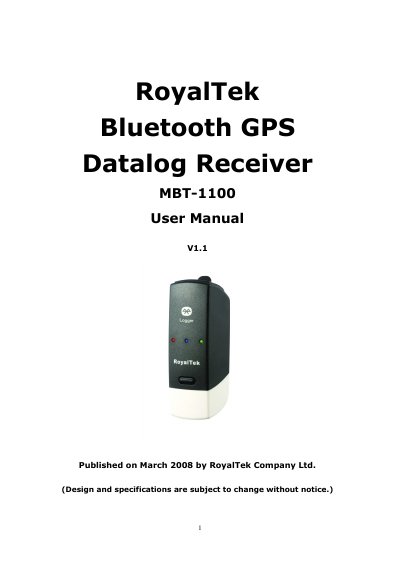

This user manual introduces the features and characteristics of RoyalTek Bluetooth GPS Datalog Receiver MBT-1100, including product overview, main features, product notification, application, specification, etc.
The MBT-1100 is a compact Bluetooth‑enabled GPS data‑logging receiver designed for navigation, vehicle tracking, and personal positioning. This manual describes the hardware features, LEDs, power management, and how to connect the device to Bluetooth‑enabled phones or PDAs.
Key sections cover package contents, power button operation, LED status indicators, step‑by‑step startup, utility software installation, data transfer procedures, detailed technical specifications, FCC compliance, and revision history.
| GPS Frequency | L1 1575.42 MHz |
|---|---|
| Chipset Sensitivity | -158 dBm (tracking) |
| Cold start time | 36 sec |
| Warm start time | 33 sec |
| Hot start time | 1 sec |
| Position accuracy (no aid) | 3.0 m |
| Update rate | 1 Hz (continuous) |
| Dimensions | 69.5 × 23 × 20 mm |
| Weight | 38 g |
| Current (fix) | 55 mA |
| Battery capacity | 550 mAh (Li‑ion, rechargeable) |
| Operating temperature (charge) | 0 °C to +50 °C |
| Battery operation time | ≥ 10 hours (average) |
Press the power button; the device powers on and the green LED indicates GPS fix status.
The battery provides at least 10 hours of continuous operation on average.
The receiver outputs position data at a continuous rate of 1 Hz.
