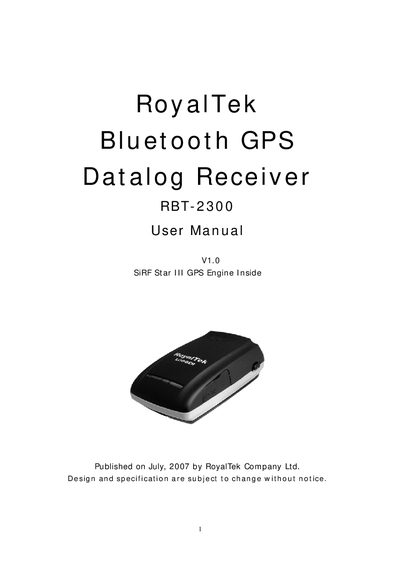

Introduces the features and usage methods of RoyalTek RBT-2300 Bluetooth GPS data logging receiver
The RBT-2300 is a Bluetooth‑enabled GPS datalog receiver designed for handheld use, automotive tracking, and portable navigation. It features a SiRF Star III GPS chipset, low‑power operation, and a compact 72 × 42 × 25 mm form factor weighing only 62 g.
This manual covers hardware features and LED indicators, battery charging, power connections, Bluetooth pairing, software installation for Windows, PDA, and Palm devices, GPS testing procedures, NMEA configuration, and regulatory information such as FCC notices.
| GPS chipset | SiRF Star III |
|---|---|
| Parallel channels | 20 |
| Protocol | NMEA0183 compliant |
| Baud rate | Selectable |
| WAAS/EGNOS support | Supported |
| Operating temperature | -10 °C to +60 °C |
| Charger temperature range | 0 °C to +60 °C |
| Battery storage temperature | -20 °C to +70 °C |
| Humidity range | up to 95 % non‑condensing |
| Dimensions | 72 × 42 × 25 mm |
| Weight | 62 g |
| Battery type | Lithium‑ion |
The battery must be charged for at least 4 hours before first use.
A glowing green LED means the GPS position is fixed; a steady green LED means the device is on but the position is not fixed.
Search for “ABT‑2300” on the Bluetooth device, select it, and enter the PIN code 0000 to connect.
