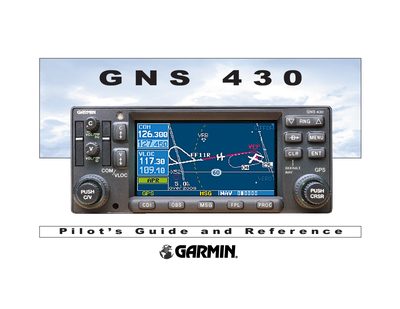

Garmin GNS 430 User Manual

About this manual

This manual introduces the Garmin GNS 430, an IFR‑capable navigation and communication system. It includes safety cautions, warranty details, and a complete accessories list to help users verify their installation package.

The guide explains the operation of all keys and knobs, how to program frequencies, create flight plans, use waypoint and VLOC functions, and troubleshoot common issues. Appendices provide specifications, map datum information, and a troubleshooting Q&A for quick reference.

What's inside

• Introduction
• Accessories and Packing List
• Warranty
• Takeoff Tour – Key and Knob Functions
• Communicating with the GNS 430
• NAV Page Group
• Flight Plans
• Approaches, Departures and Arrivals
• Waypoint (WPT) Page Group
• Appendix – Specifications

Frequently asked questions

What does the VLOC flip‑flop key do?

It swaps the active and standby VLOC frequencies, making the selected standby frequency active.

How do I change the COM frequency?

Use the large left knob (COM/VLOC) to tune the megahertz value and the small left knob to tune the kilohertz value of the standby COM frequency.
