AD5390/AD5391/AD5392 are 8/16-channel, 3 V/5 V, serial input, single-supply, 12/14-bit voltage output DACs from Analog Devices. AD5390 is a 16-channel, 14-bit voltage output DAC, AD5391 is a 16-channel, 12-bit voltage output DAC, and AD5392 is an 8-channel, 14-bit voltage output DAC. These devices feature guaranteed monotonicity, output voltage range of ±1 V to +5 V, and a temperature range of -40°C to +85°C.
The AD5390, AD5391 and AD5392 are single‑supply DACs offering 8‑ or 16‑channel voltage output with 12‑ or 14‑bit resolution. They include on‑chip reference, channel monitor, boost mode, and programmable gain/offset. The devices support serial SPI®, QSPI™, Microwire™, DSP‑compatible and C‑compatible PC interfaces.

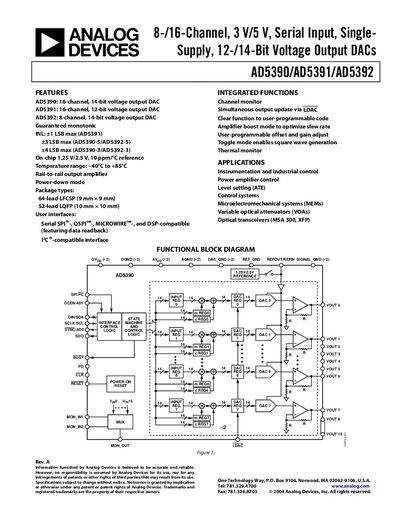

The datasheet lists electrical specifications, timing characteristics, pin configurations, and functional descriptions. It also provides package options, power‑down behavior, and revision history for design engineers.
| Resolution | AD5390: 14 bits, AD5391: 12 bits |
|---|---|
| Relative Accuracy | AD5390‑5: +3 LSB max, AD5391‑5: +1 LSB max |
| Typical Power Consumption | 0.25 mA per channel |
| Supply Voltage (AVop) | 4.5 V to 5.5 V |
| Package Types | 64‑lead LFCSP (9 mm × 9 mm) or 52‑lead LQFP (10 mm × 10 mm) |
They support SPI®, QSPI™, Microwire™, DSP‑compatible, and a C‑compatible PC serial interface.
The devices operate from –40 °C to +85 °C.
The DACs are offered in 64‑lead LFCSP (9 mm × 9 mm) and 52‑lead LQFP (10 mm × 10 mm) packages.
