AD7226 is an 8-bit D/A converter produced by Analog Devices. This converter has high accuracy, low power consumption, programmable, full speed, and is suitable for various applications.
The AD7226 is a quad 8‑bit digital‑to‑analog converter that integrates four DACs, each with an output buffer capable of driving up to 5 mA. It features microprocessor‑compatible TTL/CMOS inputs, single‑supply operation, and laser‑trimmed offsets for high accuracy. The device is offered in 20‑lead DIP, SOIC, SSOP, and PLCC packages, providing a compact solution for board‑space‑constrained designs.

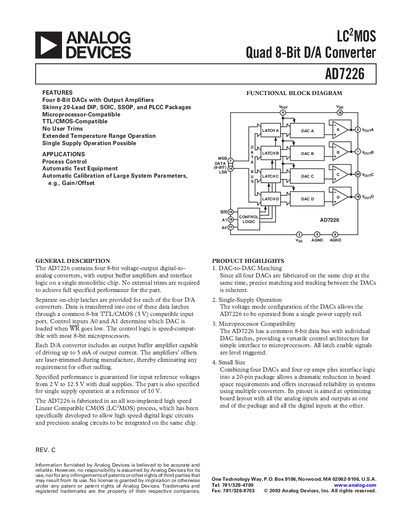

The datasheet provides detailed electrical specifications, pin configurations, timing diagrams, and application notes for process control, automatic test equipment, and system calibration. It also includes absolute‑maximum ratings, ESD sensitivity information, and ordering guides for various package options.
