AD9411 is a 10-bit, 170/200 MS/s 3.3V A/D converter with excellent linearity and low power consumption, suitable for wireless and wired broadband communications, cable reverse path, communication test equipment, radar and satellite subsystems, etc.
The AD9411 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high performance, low power, and ease of use. It operates up to 200 MSPS and includes on‑chip reference, track‑and‑hold, and LVDS digital outputs, making it suitable for broadband communications, radar, and test equipment.

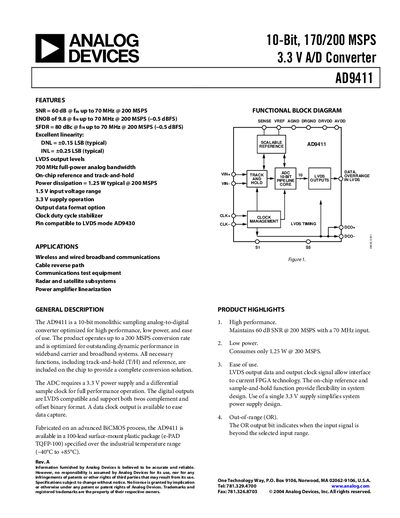

The document provides detailed DC, AC, digital, and switching specifications, absolute maximum ratings, pin configuration, package dimensions, and ordering information. It also includes functional block diagrams, product highlights, and an evaluation board reference.
| Resolution | 10‑bit |
|---|---|
| Power Dissipation | 1.25 W typical @ 200 MSPS |
| Supply Voltage (AVDD/DRVDD) | 3.3 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 100‑lead TQFP‑100 (e‑PAD) |
Both AVDD and DRVDD are 3.3 V.
Typical power dissipation is 1.25 W at 200 MSPS.
