ISL54003, ISL54005, ISL54006 are integrated audio power amplifier systems from Intersil, which combine a mono BTL amplifier and stereo headphone amplifiers in a single device. The devices are designed to operate from a single +2.7V to +5V power supply and can drive 8Ω mono speaker and 16Ω or 32Ω headphone speakers.

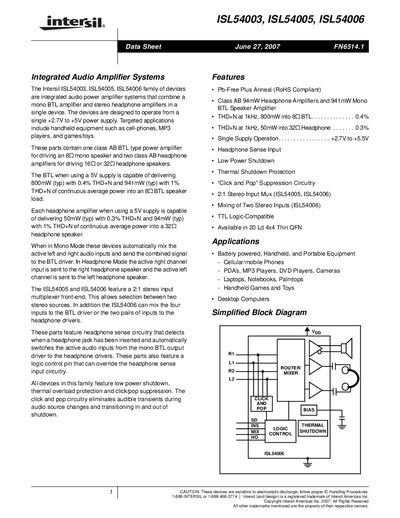

The Intersil ISL54003, ISL54005 and ISL54006 family are integrated audio power amplifier systems that combine a mono BTL amplifier and two stereo headphone amplifiers in a single 20‑lead QFN package. They operate from a single +2.7 V to +5 V supply and target battery‑powered handheld devices such as cell phones, MP3 players and portable games.
The datasheet provides detailed electrical specifications, absolute maximum ratings, pin descriptions, ordering information, typical application circuits and mechanical package drawings. It also describes the headphone‑sense circuitry, input multiplexing features and protection functions such as low‑power shutdown and thermal shutdown.
| Supply Voltage Range | +2.7 V to +5.5 V |
|---|---|
| BTL Output Power (8 Ω, 5 V) | 800 mW typ, 0.4 % THD+N |
| Headphone Amplifier Power (32 Ω, 5 V) | 94 mW typ, 1 % THD+N |
The BTL output typically achieves 0.4 % THD+N at 5 V supply.
Each device contains two class‑AB headphone amplifiers.
