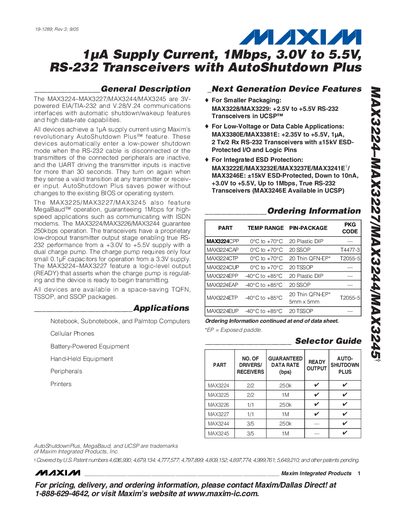

This datasheet introduces the features and characteristics of MAX3224-MAX3227/MAX3244/MAX3245 circuits, including automatic shutdown/wakeup, high data rate capability, 1µA supply current, etc.
The Maxim MAX3224, MAX3227, MAX3244 and MAX3245 are 3 V‑powered RS‑232 transceivers that include automatic shutdown/wakeup (AutoShutdown Plus) and high‑speed MegaBaud operation. They operate from a single +3.0 V to +5.5 V supply and provide true RS‑232 voltage levels using a dual charge‑pump architecture.
These devices are offered in compact TQFN, TSSOP and SSOP packages and target battery‑powered equipment such as notebooks, handheld devices, cellular phones and printers. The datasheet details absolute maximum ratings, electrical characteristics, timing specifications, pin functions and package dimensions.
| Maximum Data Rate (MAX3225/MAX3227/MAX3245) | 1 Mbps |
|---|---|
| Package Types | TQFN, TSSOP, SSOP |
The MAX3225, MAX3227 and MAX3245 support up to 1 Mbps.
